All has been running well since the upgrade to 24v Battery setup, I am running LifePo4 batteries in series of 8, just as thought, because my battery must keep over voltage at no more then 28.6 volts and a low voltage of about 22v, (hopefully never get that low).
Just a idea.......Be nice to see the graph on the left hand side be scaled different, a scale from 22v to 30v so as to see steps in one volt steps.
With thanks Ross
All has been running well since the upgrade to 24v Battery setup, I am running LifePo4 batteries in series of 8, just as thought, because my battery must keep over voltage at no more then 28.6 volts and a low voltage of about 22v, (hopefully never get that low).
Just a idea.......Be nice to see the graph on the left hand side be scaled different, a scale from 22v to 30v so as to see steps in one volt steps.
With thanks Ross
Hi Ross. Are the other graphs ranges good for you? Probably the watts graph can be changed too. And the panel voltage.
Hi Jonathan, my setup, the voltage on the panel is just top out at 80V, my panels are rated at 45 volts open circuit each and while my graph doesn't get to 90v because there is alway a slight load on the panels, what would be handy is the wattage on the load side, if i could be worked out a Plus-Minus graph on the battery, that way i could tell if the battery is in charging or discharging state in relation to the load (Bit like a amp meter minus 20-0- plus 30 meter but in wattage).

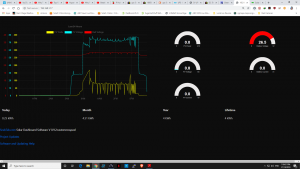

The graph below is the last 24hrs of use

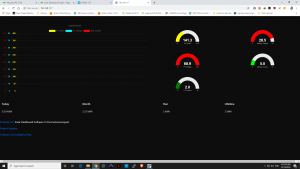

Just another thought, the semi circle charts if they could be grouped closer together and allow more room for the main graph, also at the same time could it also grow taller.
Thanks Ross
Today i had the web page shake like in Adam Welsh you-tube video, it was only when i resized the page that it went away, there seems to be at certain sized window that this happens with, it maybe the browser problem?.
Today i had the web page shake like in Adam Welsh you-tube video, it was only when i resized the page that it went away, there seems to be at certain sized window that this happens with, it maybe the browser problem?.
Yes, this happens at certain window sizes. Best is to avoid the size where this happens. V3 software may fix this.
The solar dashboard attempts to connect to an external access point on startup. If successful it is running in STA mode and can be accessed via the network it connected to. If unsuccessful it goes into AP mode and runs the webpage to configure the network to connect to.
If this is correct, I would say that the setup is good for RVs when they are parked at home and connected to the house wifi network, but not so great when you are out in the wilderness where there are no networks to connect to. Seems to me that it should be possible to choose to just run the thing in AP mode to allow for this situation.
Hopefully I am just confused again and that doing this is possible.
@mwihtson thank you for your feedback. The V3 version now has the ability to work in AP mode and can be used with its own network, no need for an additional wifi network to connect it to.
Checking your code on bitbucket, I don't see where you're writing to SDCard. For instance, src/coms_web.cpp delivers hist_data.xml, but a grep of the code doesn't show anywhere else that file is accessed or written to. Am I missing something?
Checking your code on bitbucket, I don't see where you're writing to SDCard. For instance, src/coms_web.cpp delivers hist_data.xml, but a grep of the code doesn't show anywhere else that file is accessed or written to. Am I missing something?
Hi MikeS, the current code on bitbucket is for V1 and V2 version of the hardware. The V3 software is not currently on bitbucket. To write to SD card you can use the Arduino SD library, but serving files from SD card through ESP is tricky, this code in Github is a good start to look at: https://gist.github.com/pim-borst/17934 ... 4366c2135c
